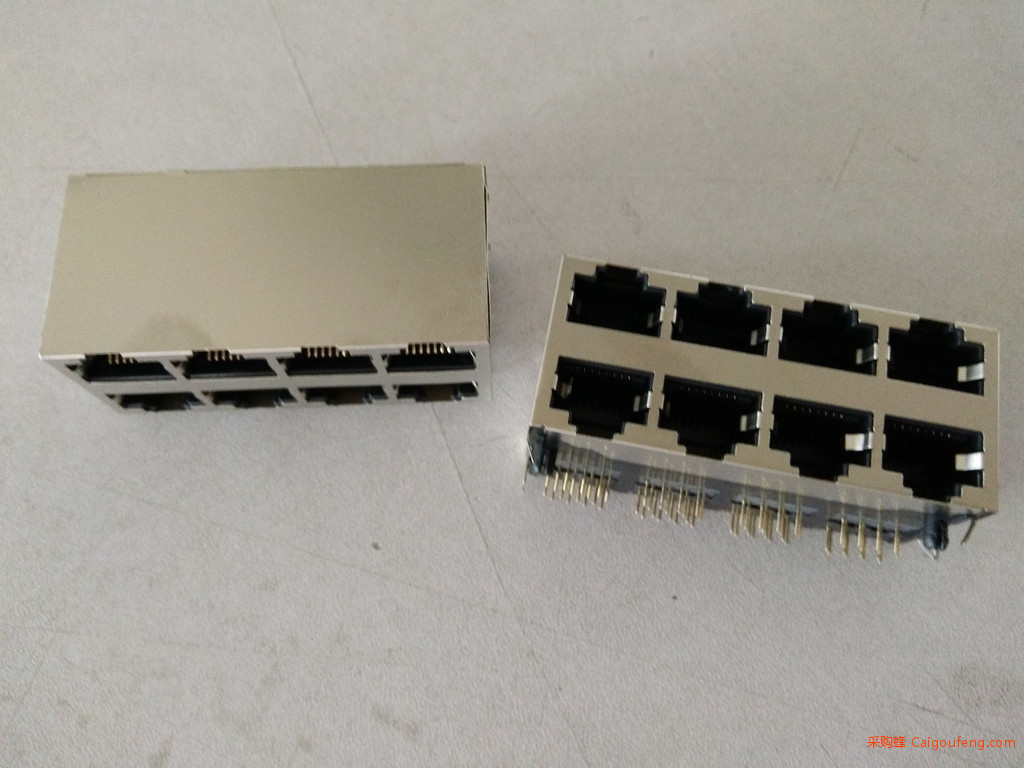

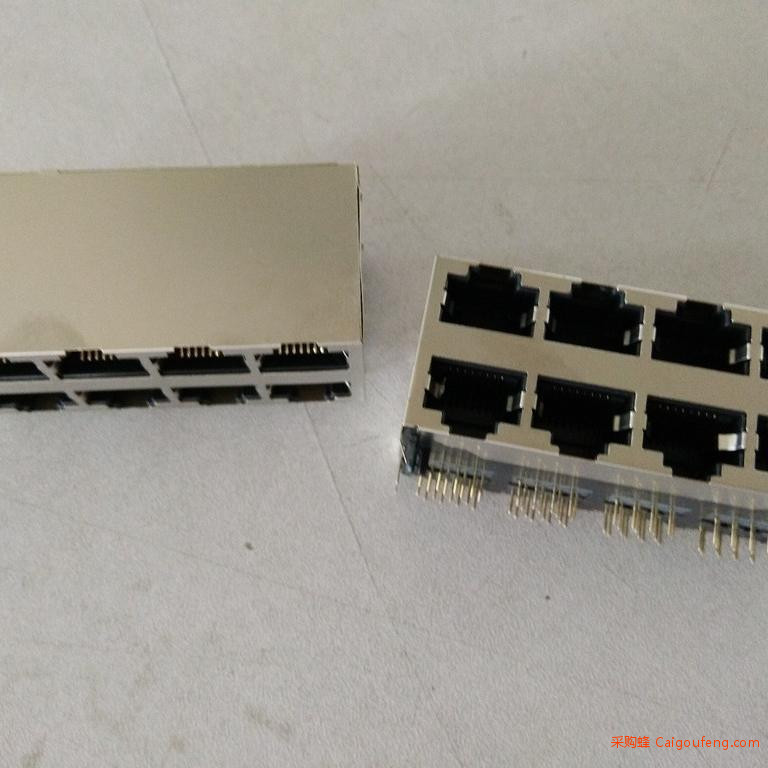

PCB JACK 2*6,2*6带弹片,2*6+LED,2*8.
MATERIAL
1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON
2. HOUSING COLOR : BLACK OR OTHERS
3. CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm
4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"
5. SHIELD : 0.20 THICKNESS BRASS WITH NICKEL PLATED
SPECIFICATIONS
ELECTRICAL
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING: 1.0 AMP
3. CONTACT RESISTANCE: 30 MILLIOHMS MAX.
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC
5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTE
MECHANICAL
1. DURABILITY : 750 CYCLES MIN
2. PCB RETENTION PRE-SOLDER: 1 LB MIN
ENVIRONMENTAL
1. STORAGE :-40℃~80℃
2. OPERATION: 0℃~70℃
